DRAWWORKS
OIME 2000 with 2 – GE 752 DC Motors
Grooved for 1 3/8” Drill Line
Wichita 336 water cooled Auxiliary Brake

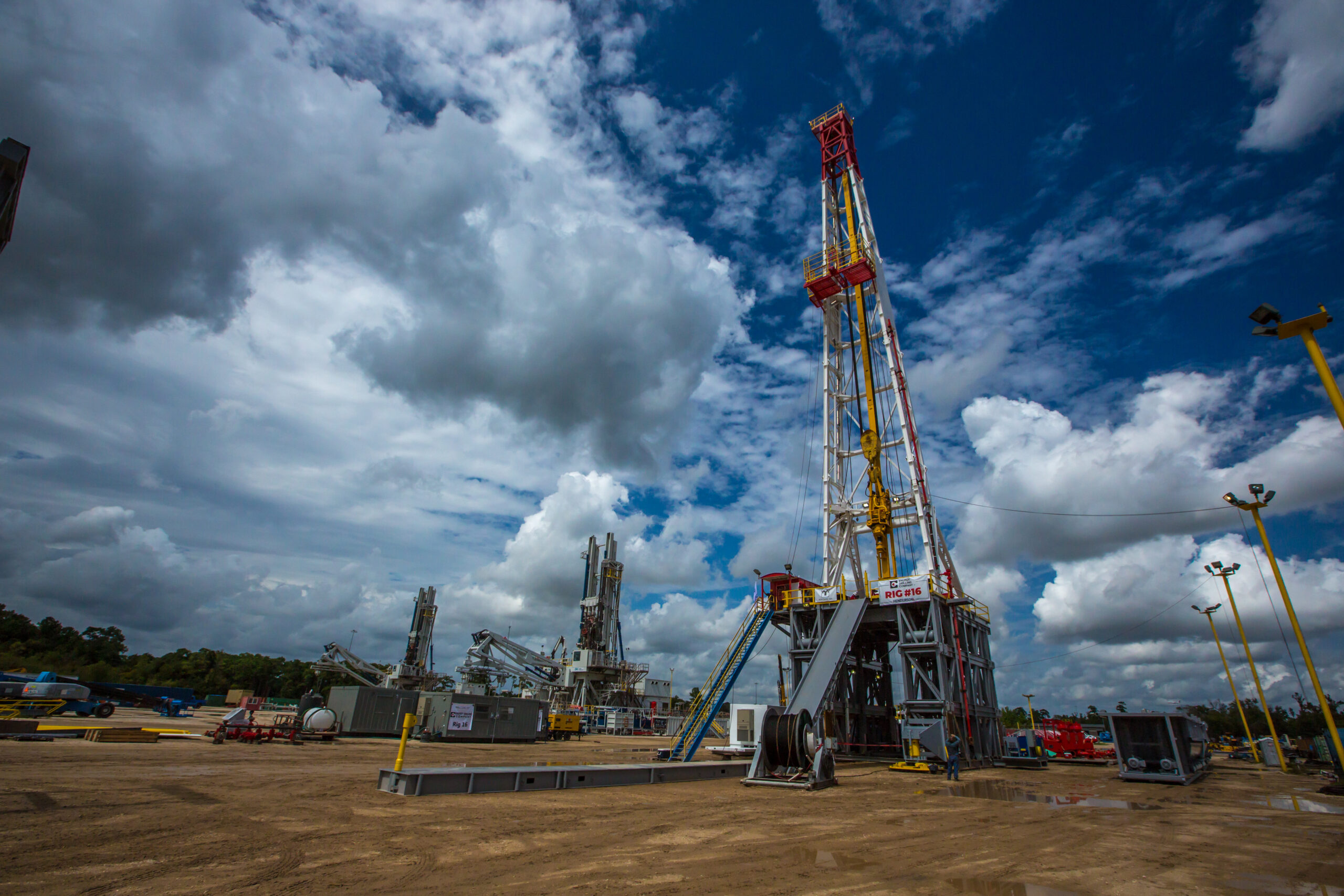

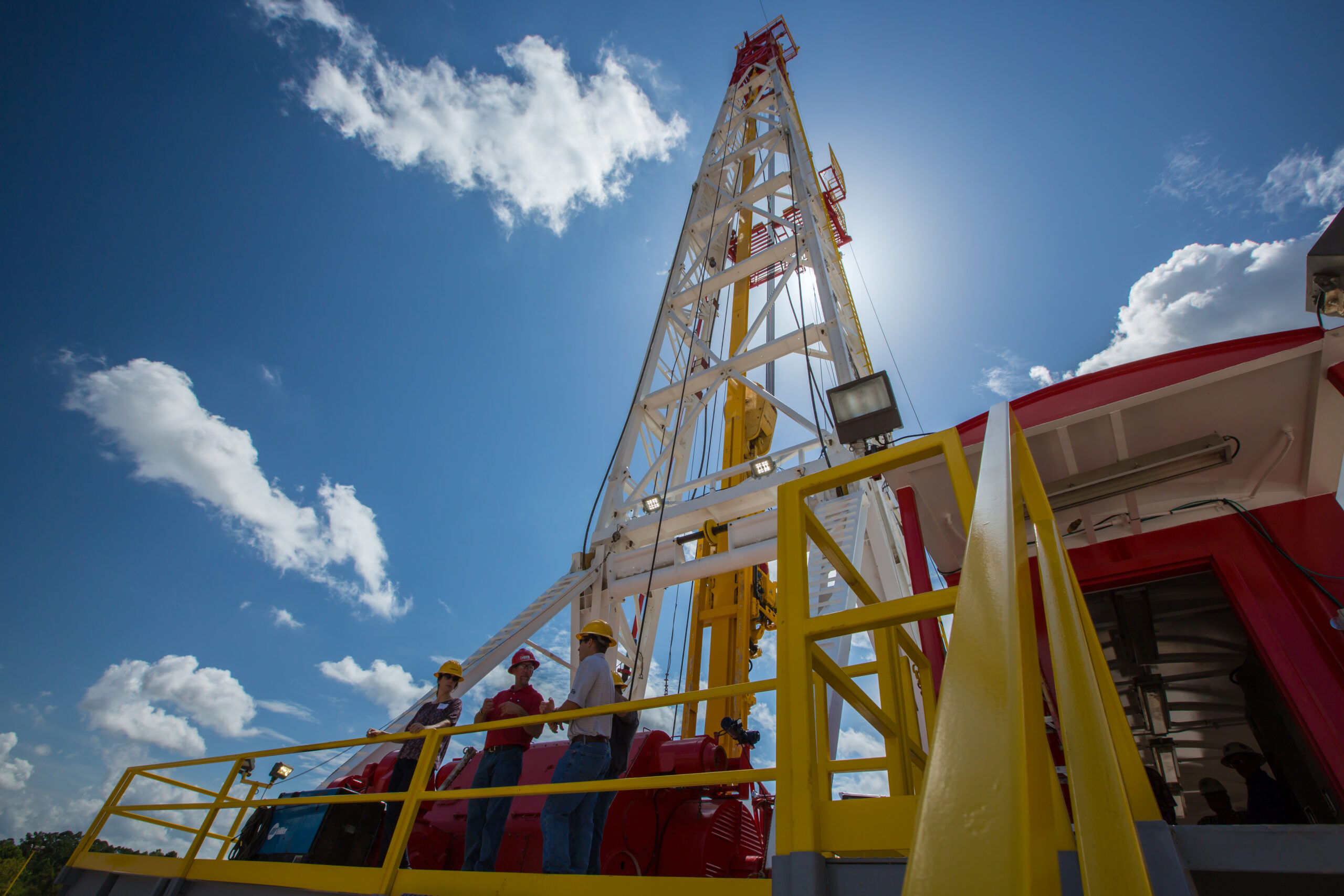

DERRICK
DSI
150′ High, Cantilever Mast
1,000,000# Static Hook Load Capacity

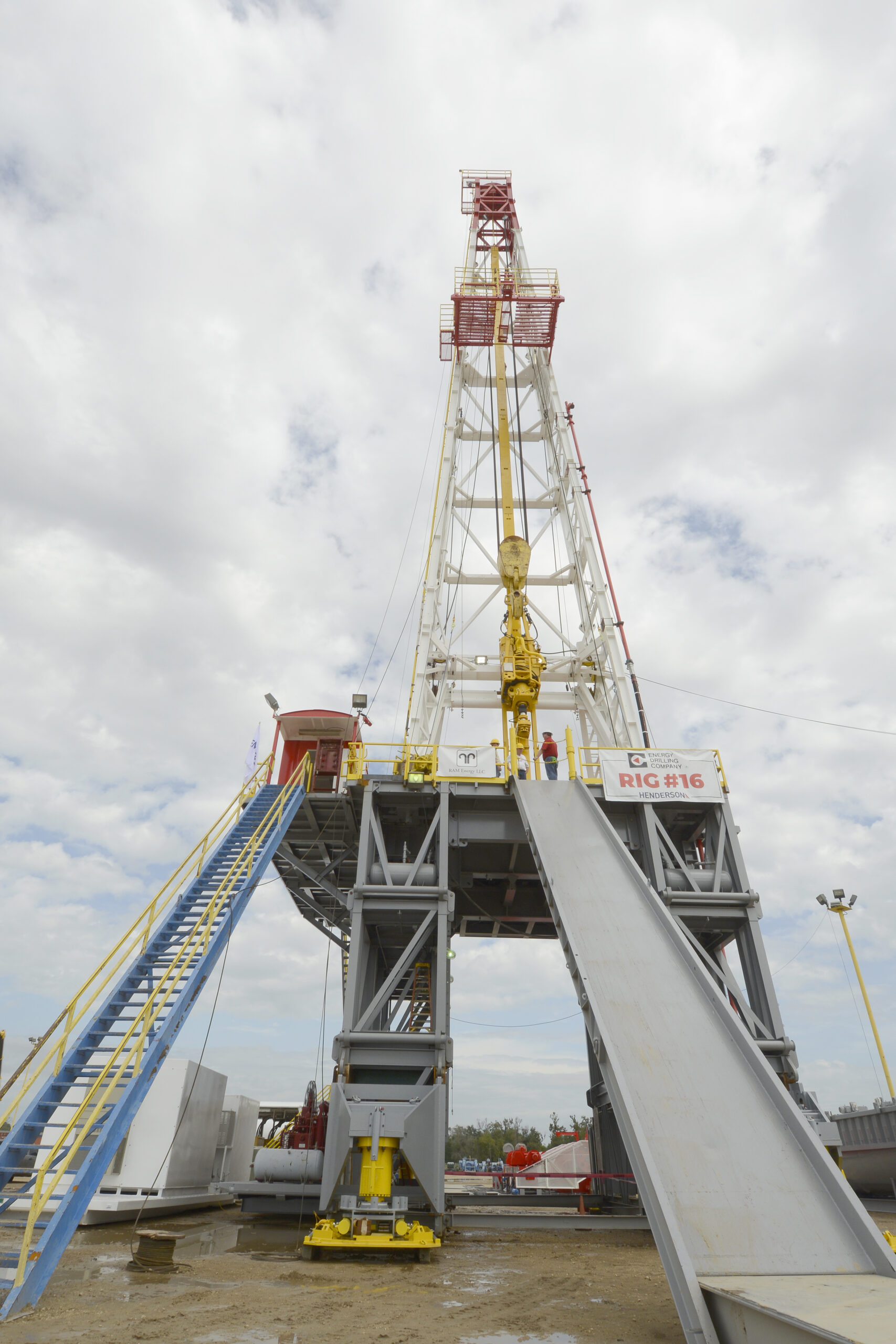

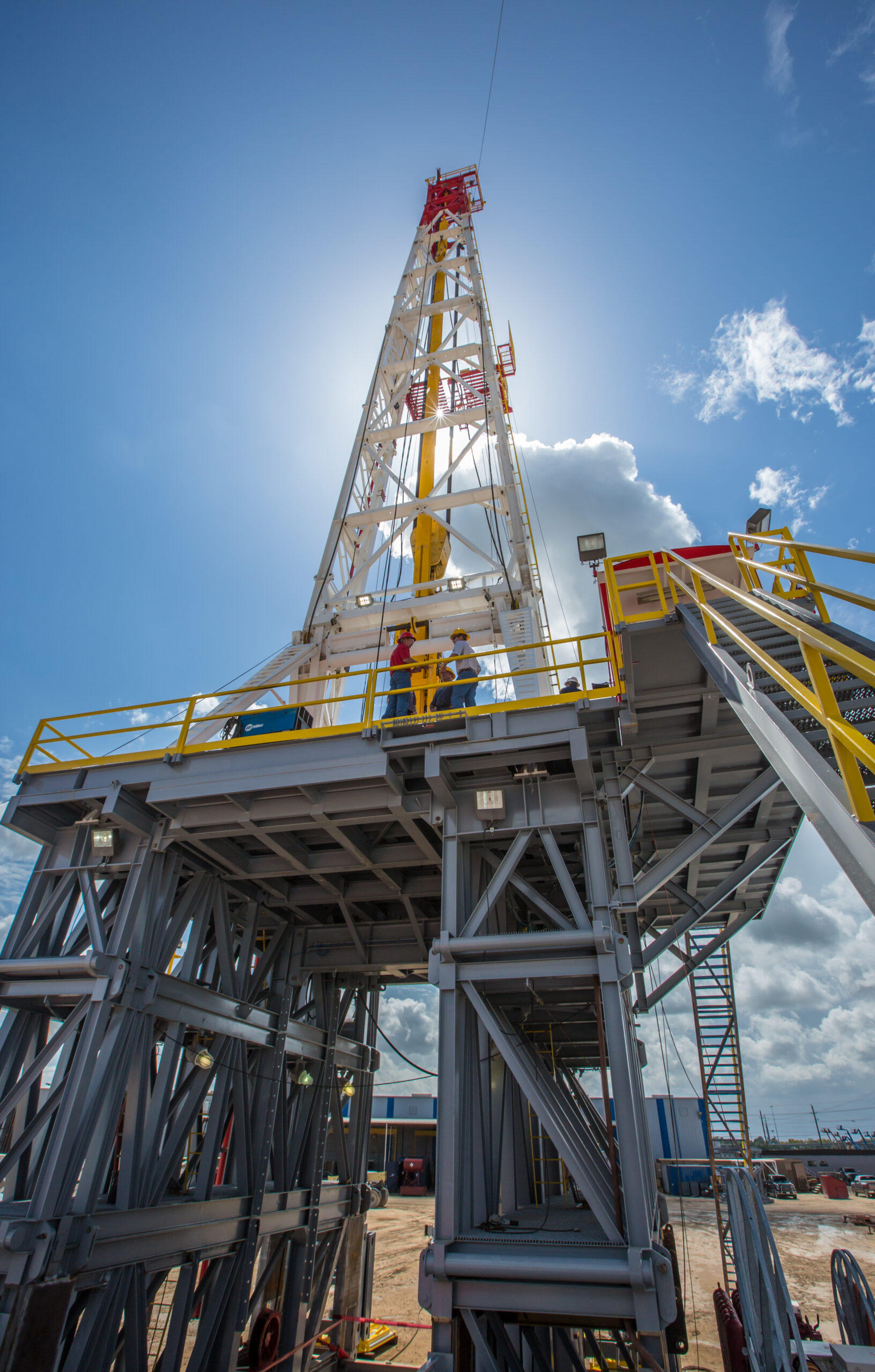

SUBSTRUCTURE
DSI with 1,000,000# casing capacity and 600,000 # setback capacity
26’ Rotary Beam Clearance
30′ High Box on Box Type
POWER SOURCE
(3) – Caterpillar 3512C’s w/ 1365 KW generators
Omron Hill type 4 x 4 bay SCR House
PUMPS
3-Weatherford MP-16 Type 7 ½” x 12″ Triplex Powered by 2-752 DC Motors each – 7500 psi working system
Low Pressure Mud Mixing System with Two 8" x 6" Centrifugal Pumps w/ 75 HP Electric Motors
DRILL STRING
Drill Pipe – 5” 19.5# S-135 NC50 WITH 4 ½” IF connections (±22,300’)
Drill Collars – 6” – 6½” OD NC44 with Hardband
8" – 8 1/2″ OD 6-5/8” REG
Pipe Spinner: J29 Varco Chain Type
PREVENTERS
1- 13 5/8” Hydril type Annular wp 5000 psi
1- Schaffer style 13 5/8” 10,000 psi Double Rams
1-Shaffer style 13 5/8” 10,000 psi Single Ram
1- 4” manual valve, 1- 4” HCR valve, 2- 2 1/16” valves and 1- 2 1/16” check valve all 10,000 psi
1- CAD Type M Series, 5 Station Closing Unit with 220 Gallon capacity with remote
Choke Manifold-10,000 psi 4" x 3" with Two Adjustable 3’’Choke
OTHER EQUIPMENT

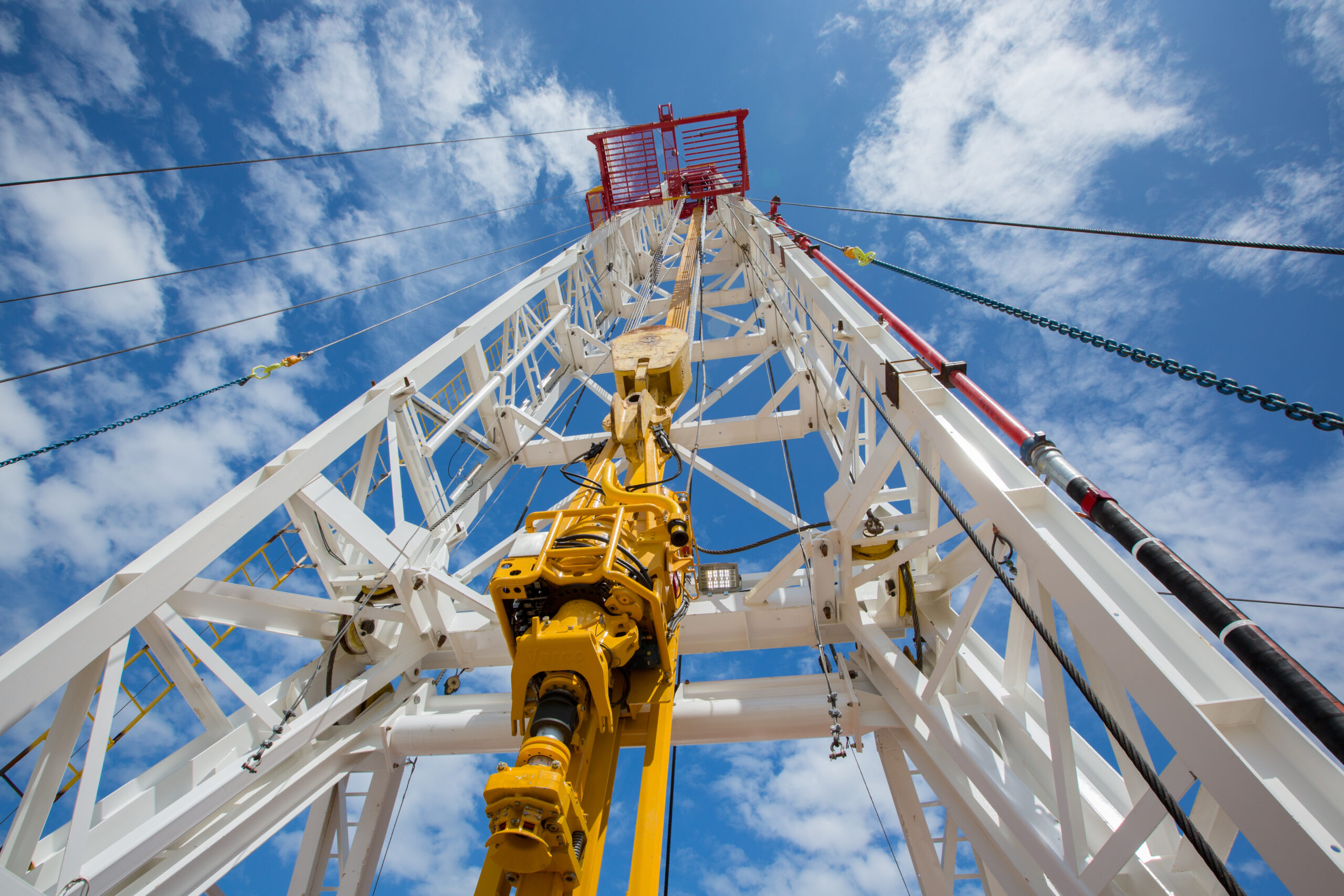

NOV TDS-11 500 ton top drive w/ AC VFD house and 7500 psi working pressure
Walking System with HPU
Crown Block – (7) 60″ Sheaves,
Traveling Block – Oilwell 500 Ton
Weight Indicator – Type D
Rotary – 37½” x 500 ton
Fuel Tank (11,000 gallons) with Lubester –
trip tank (100 bbl)
Wireline Unit – .092 Line
Mud Tanks – Two Tank System, Round Bottom, 1000 BBL with Electric Agitators Plus Slugging Tank
Shakers – 3 x Derrick 514 Type Linear Motion
Desander – Swaco, (2) 12″ Cones with Mission Magnum 5″ x 6″ Centrifugal Pump w/40 HP Electric Motor
Desilter – Swaco, (12) 4″ Cones with Mission Magnum 5″ x 6″ Centrifugal Pump w/40 HP Electric Motor
Degasser – Swaco
OFI Basic Services
Drill Water Tank (500 bbl)

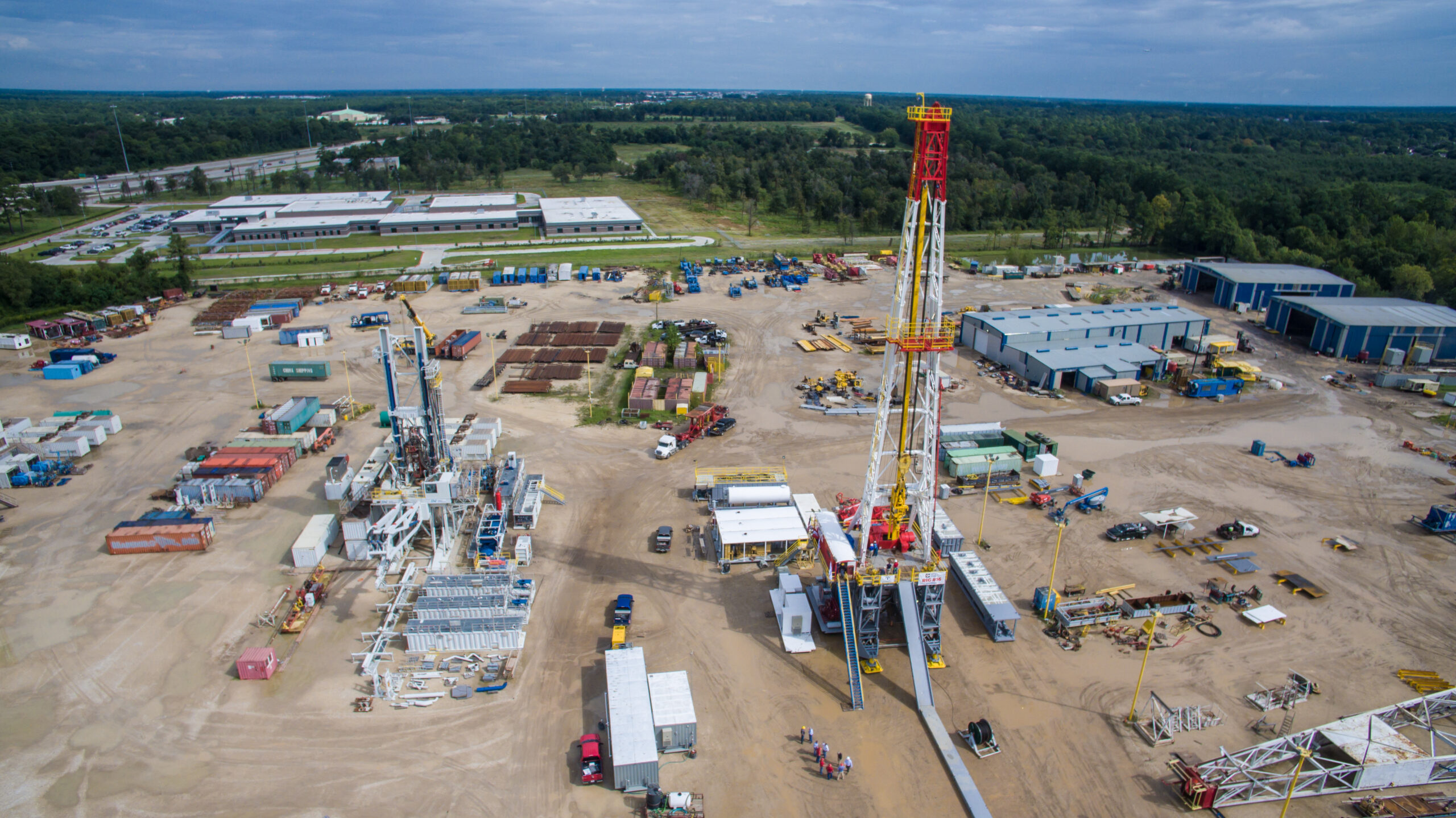

Located in South Texas, USA
