DRAWWORKS

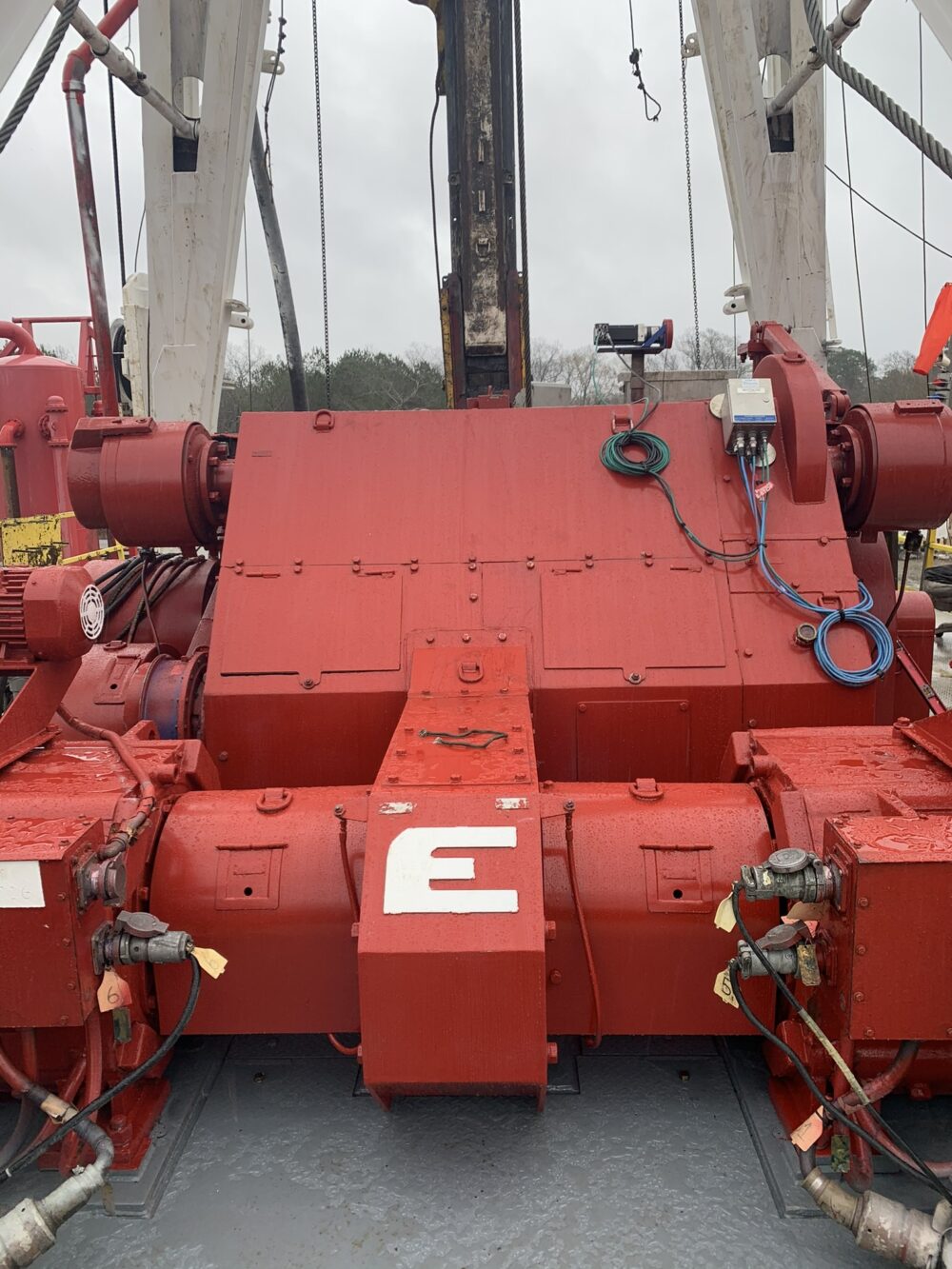

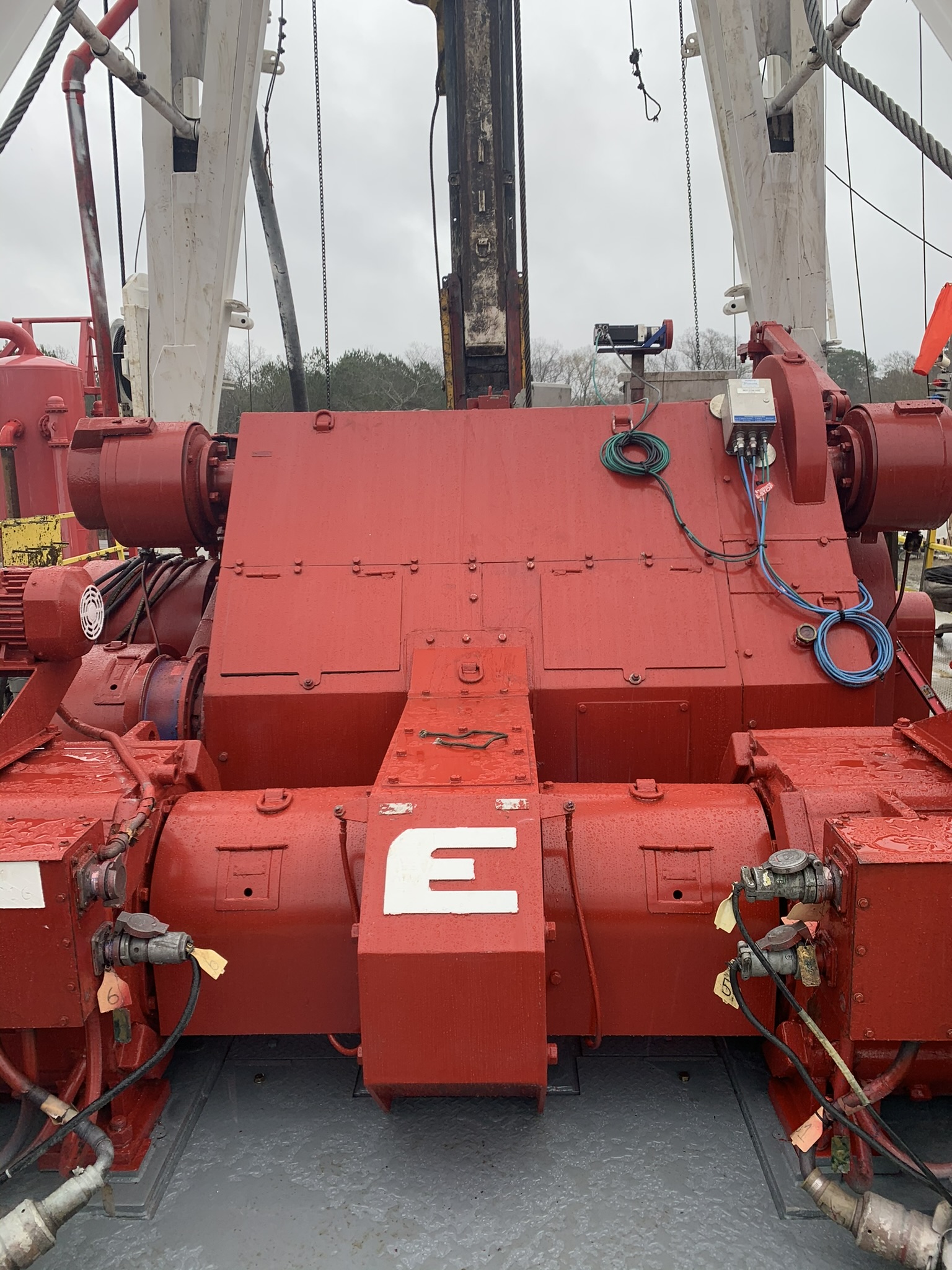

D1000E Drawworks with 2-DC 752 Motors
Grooved for 1 ¼” Drill Line
424 Air Operated Water Cooled Aux-Brake

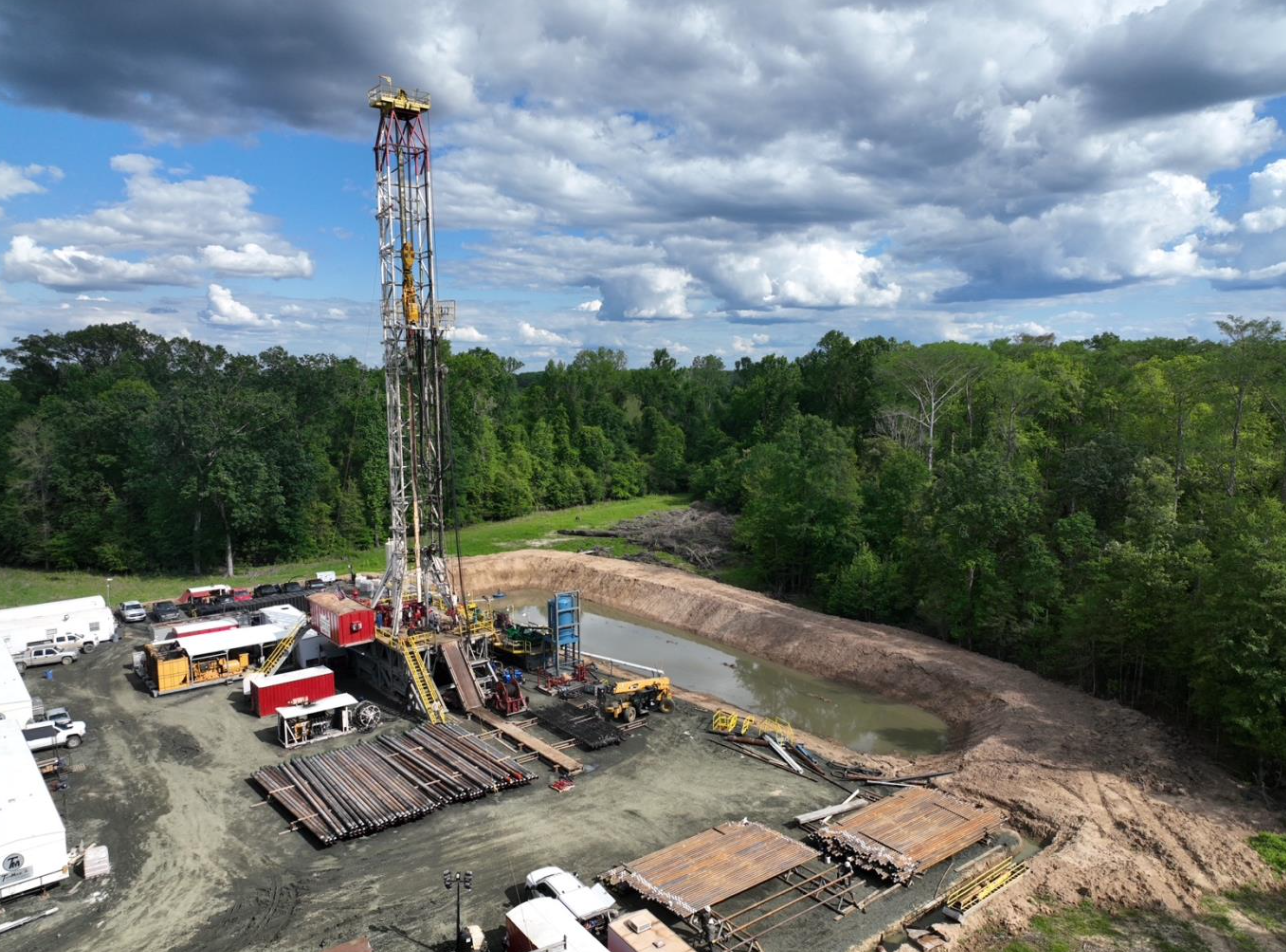

DERRICK
DSII

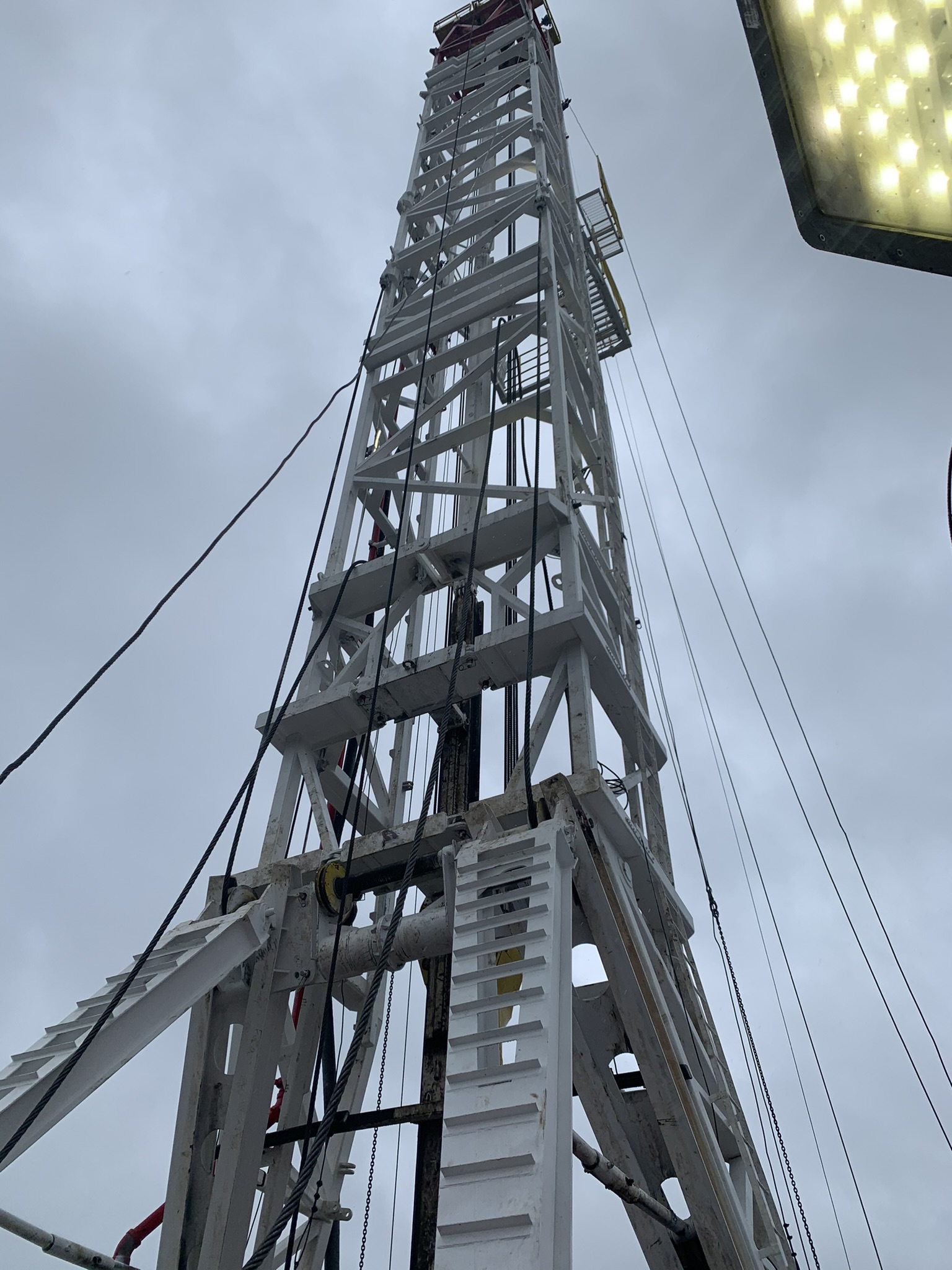

142’ Triple Derrick or 110’ Double
550,000# Static Hook Load with 10 Lines
SUBSTRUCTURE
DSII
12’6’’ Rotary Beam Clearance, 17′ RKB
16’ Box On Box Substructure
POWER SOURCE
(2) Caterpiller 3512C’s W/ 1225 KW Generators
Ross Hill 3 Bay SCR House
PUMPS

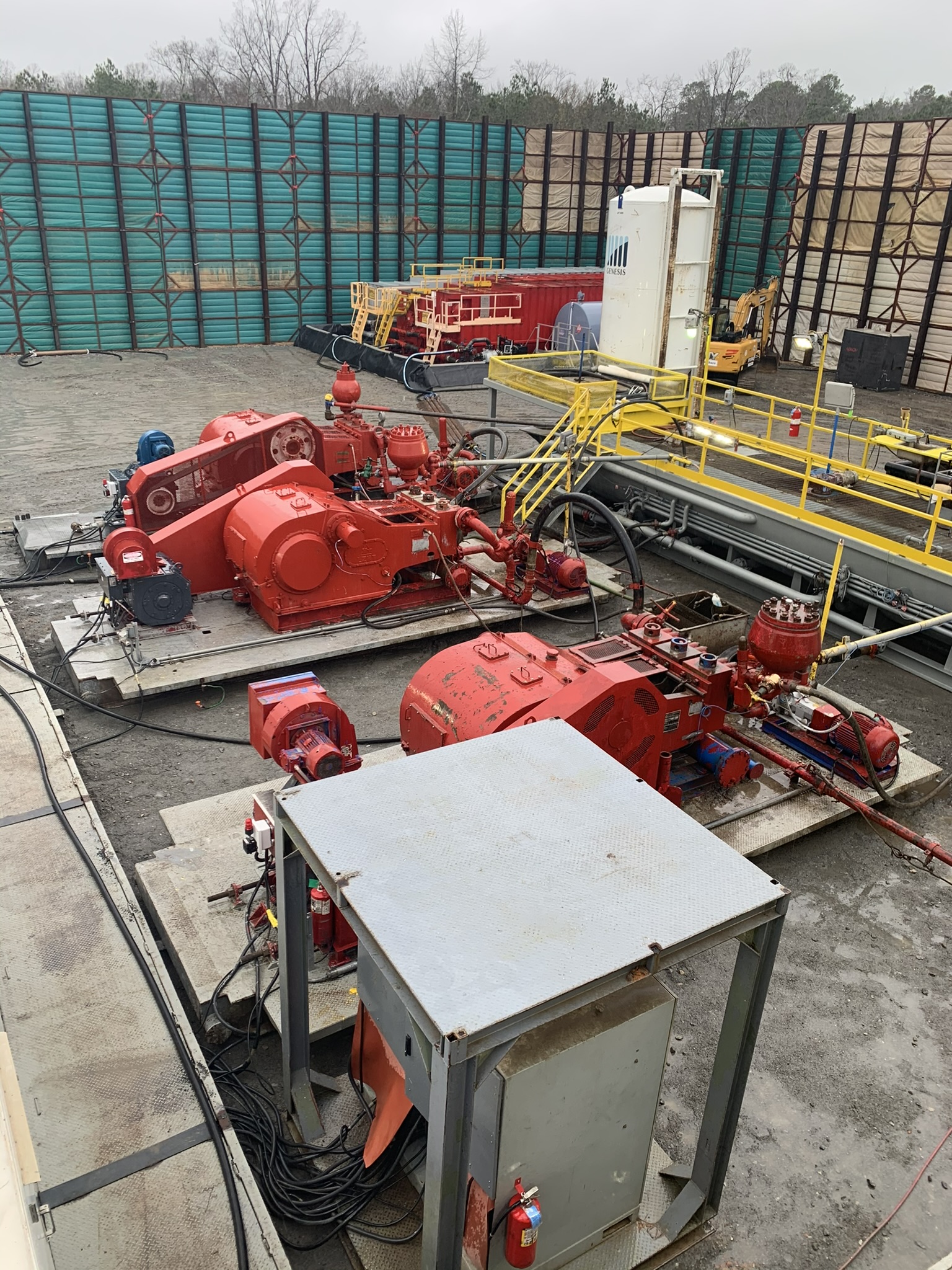

(3) Emsco type F-1000 6¾” x 10″ Triplex powered by one 752 DC motor
Low Pressure Mud Mixing System with Two 5″ x 6″ Centrifugal Pumps w/60 HP Electric Motors
DRILL STRING
Drill Pipe – 4½” Grade G-105 16.60, X-Hole with Hardband (±13,100’)
Drill Collars – 6” – 6½” OD NC44 with Hardband
Pipe Spinner
PREVENTERS
(1) Shafer Hydril 11″ Annular w.p. 5000 psi
(1) NL Shafer 11″ Type LWS 5000 psi Space Saver Double Rams
(1) CPC Closing Unit (4) Station 3000 psi with 25 HP Electric Motor with Triplex Pump (2) Air Pumps CS-01108,
(8) 10 Gallon Bladder Type Bottles with remote
Choke Manifold – 5000 psi 4″ x 2″ with two Adjustable Chokes
OTHER EQUIPMENT
Warrior 250 Ton Top Drive
Crown Block – DSII, (5) Sheaves
Traveling Block – YG-225-250 Ton – (5) 36” Sheaves
Cold start – QT 7.5
Weight Indicator – AOI
Rotary – 27½” x 53¼” 275
Air Compressors – (2) Quency 120 screw type
Air dryer OHD
Fuel Tank with Lubester – 8000 Gallon
Wireline Unit – Mathey Model GC3-B2 type, .092 Line

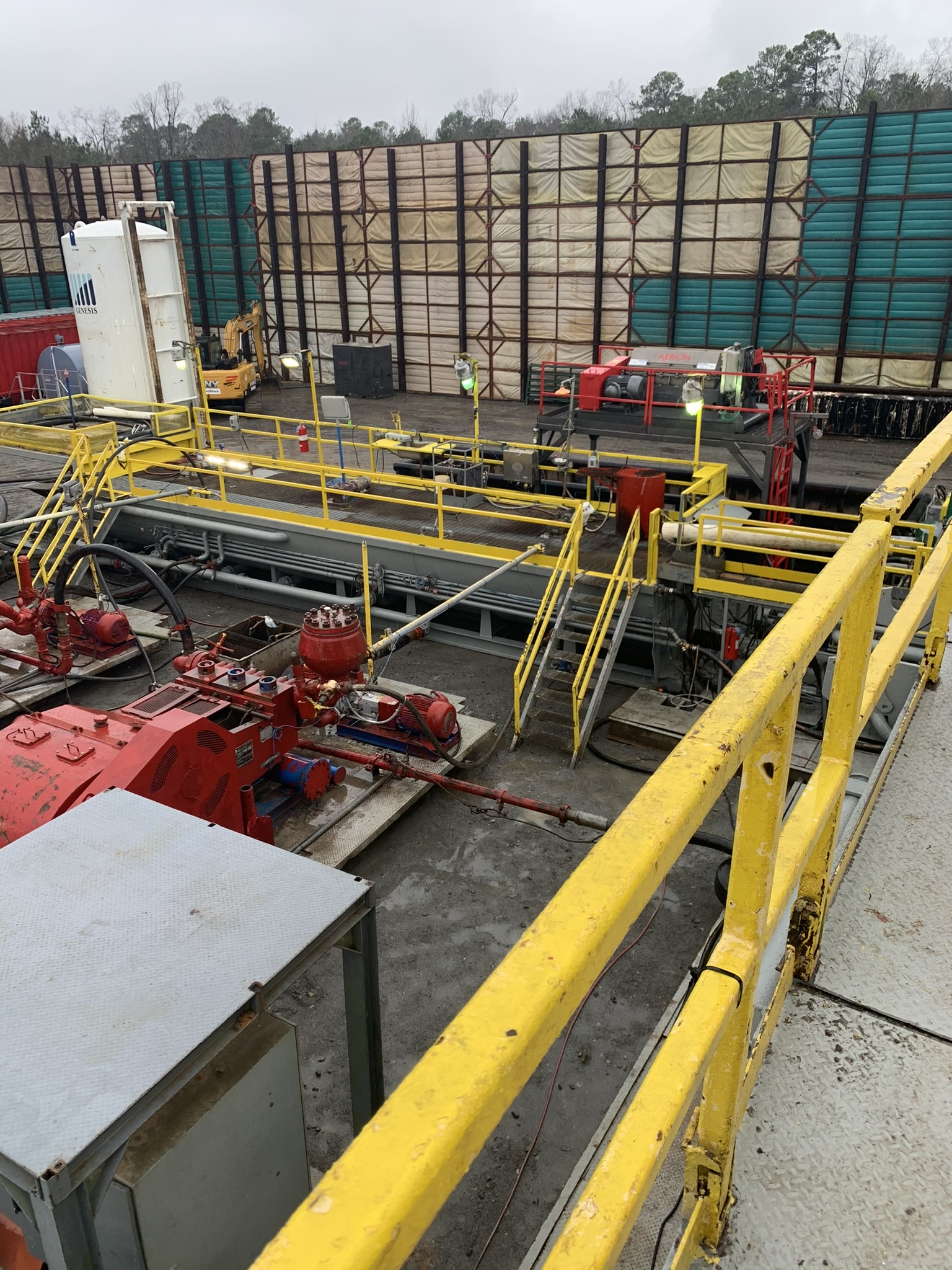

Mud Tanks – Two Tank System, Round Bottom 560 Barrels with Electric Agitators

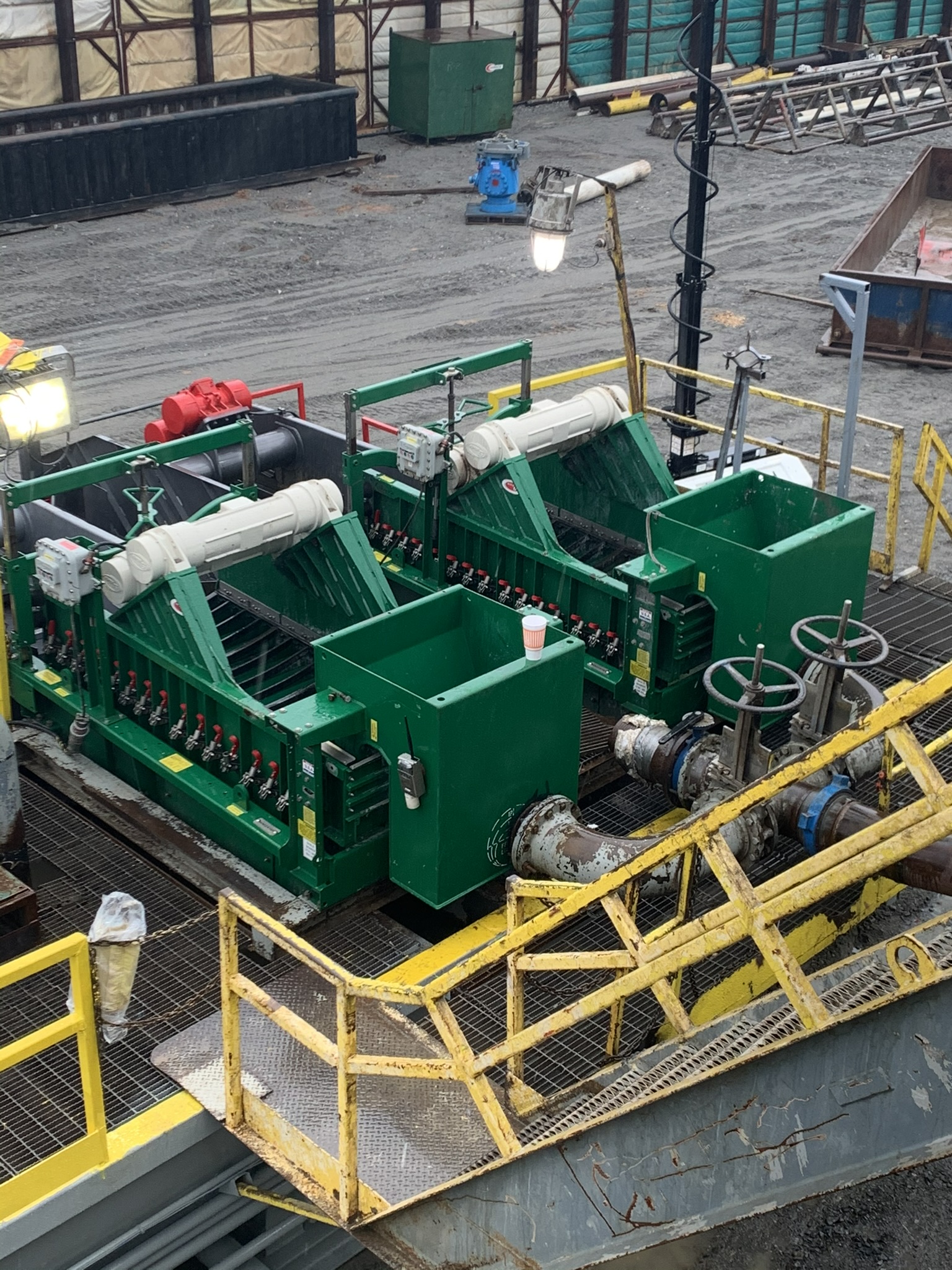

2 Shaker – Derrick 504 Hyperpool Type Linear Motion
Desander – Brandt, (2) 12" Cones with Mission Magnum 5″x 6″ Centrifugal Pump w/75 HP Electric Motor
Desilter – Brandt, (12) 4″ Cones with Mission Magnum 5″ x 6″ Centrifugal Pump w/75 HP Electric Motor
Degasser – Derrick Drilco type
OFI Basic Services
315 Barrel Drill Water Tank
Hydraulic Walking System
